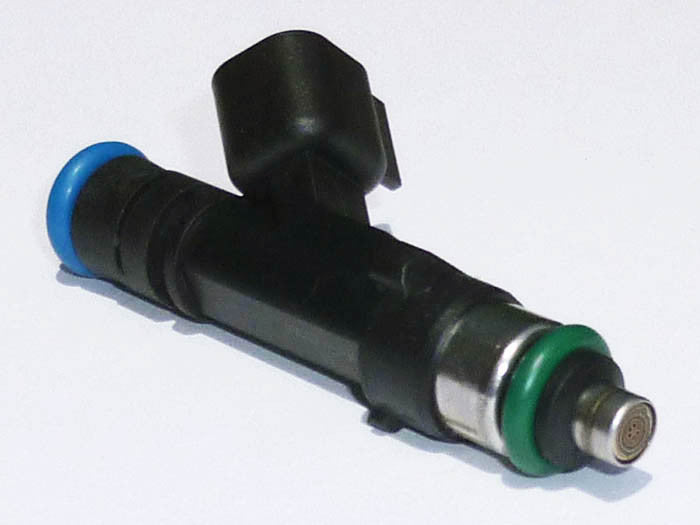

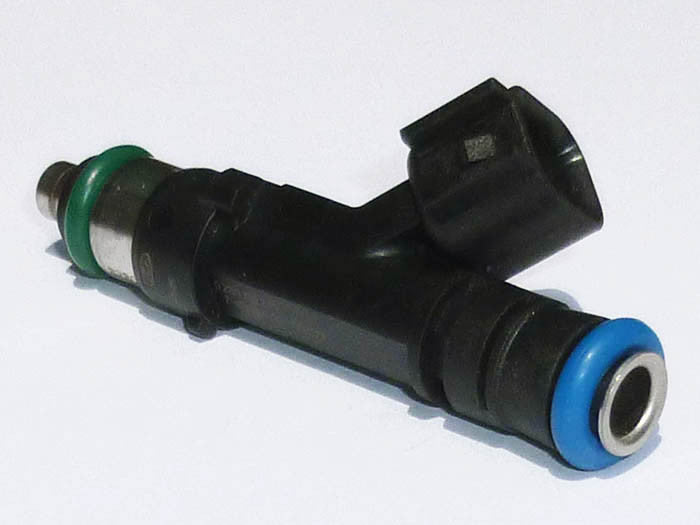

IN600 Bosch EV14 Fuel Injector Set Chevy LS1 LSx Ford 4.6L 5.0L 5.4L

$550.00

Sold Out

Flowrate at 43.5psi: 700cc Gasoline, 630cc N-Heptane

Quantity: Eight (8)

Type: Bosch EV14

Length o-ring to o-ring: 60mm (long)

Inlet diameter: 14mm (large)

Connector: USCAR with your choice of EV6 clips or wireless USCAR to EV1 adapters

Fits: Most GM LS-based (LSx) and Ford 4.6L 5.0L 5.4L V8 engines



The IN600 fuel injector uses a 16-hole atomizer plate to create two spray cones spread apart at a 20 degree angle. Each cone is 17 degrees wide. Each injector will come with new inlet o-rings. NOTE: For proper spray angling, set the connectors straight up or down (in-line with your valve stems). The cones will then spray 90 degrees on either side. Single valve runners such as LS1's will benefit from having the connector sideways, parallel with the fuel rail. They will work in other positions, but not as efficiently.
