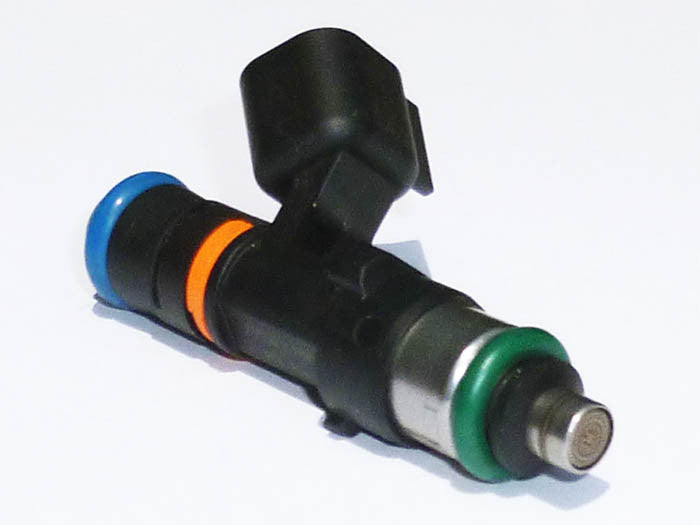

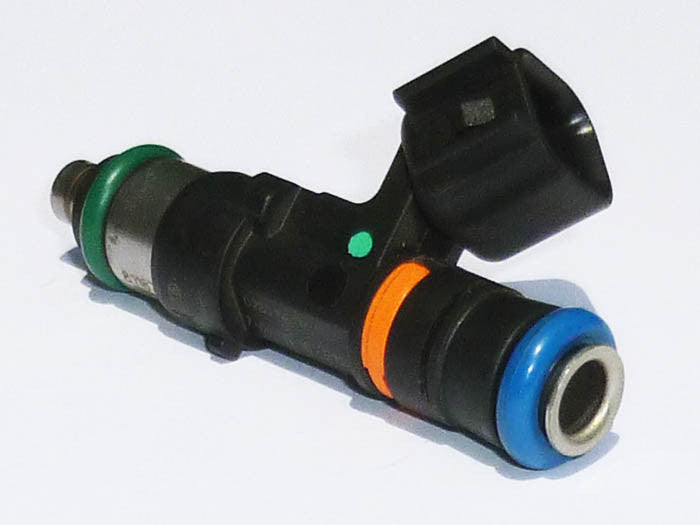

IN600 Bosch EV14 Fuel Injector Set Honda Acura K20 K24 Dodge SRT-4


Flowrate at 43.5psi: 700cc Gasoline, 630cc N-Heptane

Quantity: Four (4)

Type: Bosch EV14

Length o-ring to o-ring: 48mm (short)

Inlet diameter: 14mm (large)

Connector: your choice of EV6 clips, wireless USCAR to OBD2 adapters, or none (SRT-4)

Fits: All Honda/Acura K20/K24 motors and all Dodge SRT-4.


The IN600 fuel injector uses a 16-hole atomizer plate to create two spray cones spread apart at a 20 degree angle. Each cone is 17 degrees wide. Each injector will come with new inlet o-rings. NOTE: For proper spray angling, set the connectors straight up or down (in-line with your valve stems). The cones will then spray 90 degrees on either side. They will work in other positions, but not as efficiently.


Compare to RDX injectors: both have a split spray pattern, IN600's are 54% larger (630cc vs 410cc), IN600's are $10-50 cheaper with plug & play adapters (with our 20% off sale), IN600's are matched while RDX matching consists of pulling them out of a bulk container!
